POU’s

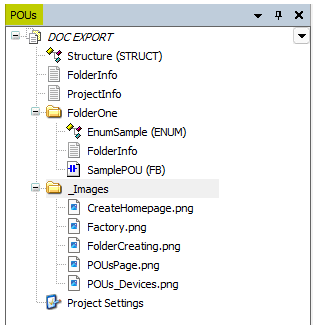

The homePage of the POUs files

../_images/POUsPage.png

How are the folders structured?

The short answer: Exactly the same as the folder structure in CODESYS.

However the static folder _Images (which contains all the images used in these pages) is not added. Also .TXT files namend ProjectInfo or FolderInfo are not added in the structure.

The ProjectInfo file is parsed into the homepage. A FolderInfo file is parsed into the page off the folder. The text you’re reading right now is also present in a ProjectInfo file.

How do i exactly create a custom page for a folder?

  1. Create the folder in CODESYS

  2. Create a FolderInfo txt file inside this folder (the script automaticaly parses the text into the folder html page.)

../_images/CreateHomepage.png
